30 Years of the Community Fire Unit (CFU)

Updated: Aug 27, 2024

The Formation of the Community Fire Unit

Following the devastating January 1994 bushfires residents were left feeling frustrated as they wanted to help protect their community but didn’t know how to. They watched, helpless, as their homes were destroyed by fire often only being armed with a garden hose ad buckets of water. This was the catalyst for Terry Munsey of the NSW Fire Brigades (NSWFB, now Fire and Rescue NSW; FRNSW) to upgrade former hose posts to Community Fire Units (CFUs) under the Bushfire/Rescue section of NSWFB so people could adequately protect their own homes as well as their neighbours. The concept of CFUs had been around since the end of World War II when hose posts were installed for first aid protection in bushfire prone areas, and it was many of these former hose posts that were upgraded to CFUs. By the middle of 1994 twelve mobile CFUs had been purchased with two already installed at Picnic Point and Lugarno, and training underway for the community.


What is the Community Fire Unit?

A CFU is a group of volunteers made up of local residents living in urban areas close to bushland. This unit is supported by FRNSW who teaches them how to prepare themselves, their families, and their home ahead of the bushfire season. Each CFU is equipped with basic firefighting equipment and training to assist with protecting their community. As former CFU Coordinator and Station Officer Terry Munsey put it “these units are to bushfires, what a first aid box is to an accident … they are to be used by the Community Fire Unit members until the arrival of the Brigade - in a similar way to someone with a first aid certificate administering basic first aid at an accident scene prior to the arrival of an ambulance” (Fire News, Summer 1998). In preparation for the approach of fire, CFU volunteers will prepare hoses and standpipes, set up pumps in residential swimming pools, and wet down properties and the surrounding bush land. They also play a key role even after the fire has passed, staying vigilant and putting out small spot fires for several days. The CFU can then work closely with locals after devastating bushfires to aid the grieving and rebuilding process within their own community.


Community Fire Units training with Terry Munsey, c. 2000s [Museum of Fire Collection]

Each unit is linked to a local fire station who play an important role in the initial and ongoing training and cements the bridge between FRNSW and local communities. It has also given the community greater awareness around bushfire safety with the CFU passing on knowledge about fire prevention to the community. The CFU also further assists in bushfire hazard reduction practices which expose the volunteers to real-life fire conditions, preparing them for the bushfire season. This way when a bushfire does occur, the CFU can begin protecting the community until the fire brigade arrives.


Aboriginal Community Fire Units

On 20 December 2002 the first Community Fire Unit in a NSW Aboriginal community was officially commissioned by the NSWFB at Bellwood Road in Nambucca Heads. This came after Nambucca Heads retained firefighters Luke Bateman, Mal Edwards and Terry Marshall expressed their concern about the possible bushfire threat to the Aboriginal community along Bellwood Road. The firefighters took the concept to the local Land Council who were very enthusiastic about the program. Other Aboriginal communities would follow, including Fingal Heads receiving their own CFU during NAIDOC week in 2003 and Brewarrina in 2004. These CFUs enabled local Aboriginal residents to pass on important safety advice to their community about bushfires, home fire safety, and other important safety messages.


Official commissioning Nambucca Aboriginal CFU, 20 December 2002 [Museum of Fire Collection]

In 2004 CFU Co-ordinator Terry Munsey and Aboriginal Services Officer Terry Hill commissioned artist Danielle Mate to paint a CFU trailer which was used to promote both the CFU Program and Aboriginal cultural awareness. The trailer was first showcased at the NSWFB Firefighters 2004 State Championship in Port Macquarie and was a big hit!


CFU trailer painted by Danielle Mate, 2004 [Museum of Fire Collection]

The Community Fire Unit Today

Following the October 2013 bushfires, FRNSW reviewed the activation and operations of the CFU. Twenty years after first forming as the CFU, a new section was then created within FRNSW in January 2014 to support the work of CFU volunteers and the firefighters who assist them. The success of the CFU meant they outgrew the capacity of the Bushfire Section, and to give them increased training and communication a new independent team was established. In 2015 more improvements were made to the CFU with the rollout of a disaster recovery vehicle that had access to free wi-fi, phone chargers, TV, laptops, printer and access to valuable information for residents in bushfire disaster zones. Today, there are over 4,600 volunteers working across 500+ Community Fire Units throughout NSW.


On Display at the Museum

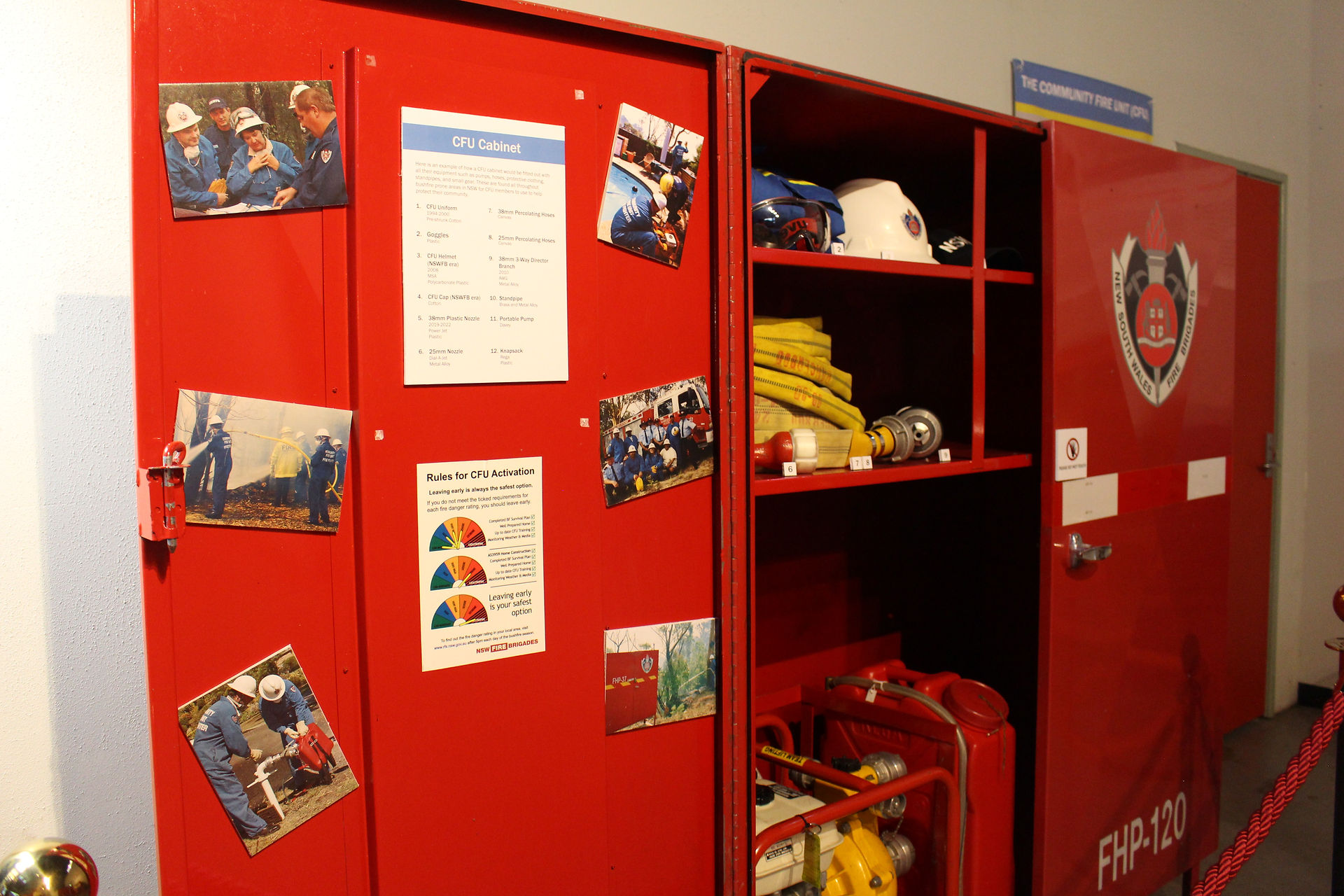

The Museum recently completed a display all about the history of the CFU which showcases some fantastic objects including a CFU cabinet and the equipment you would find inside.



Objects on display:

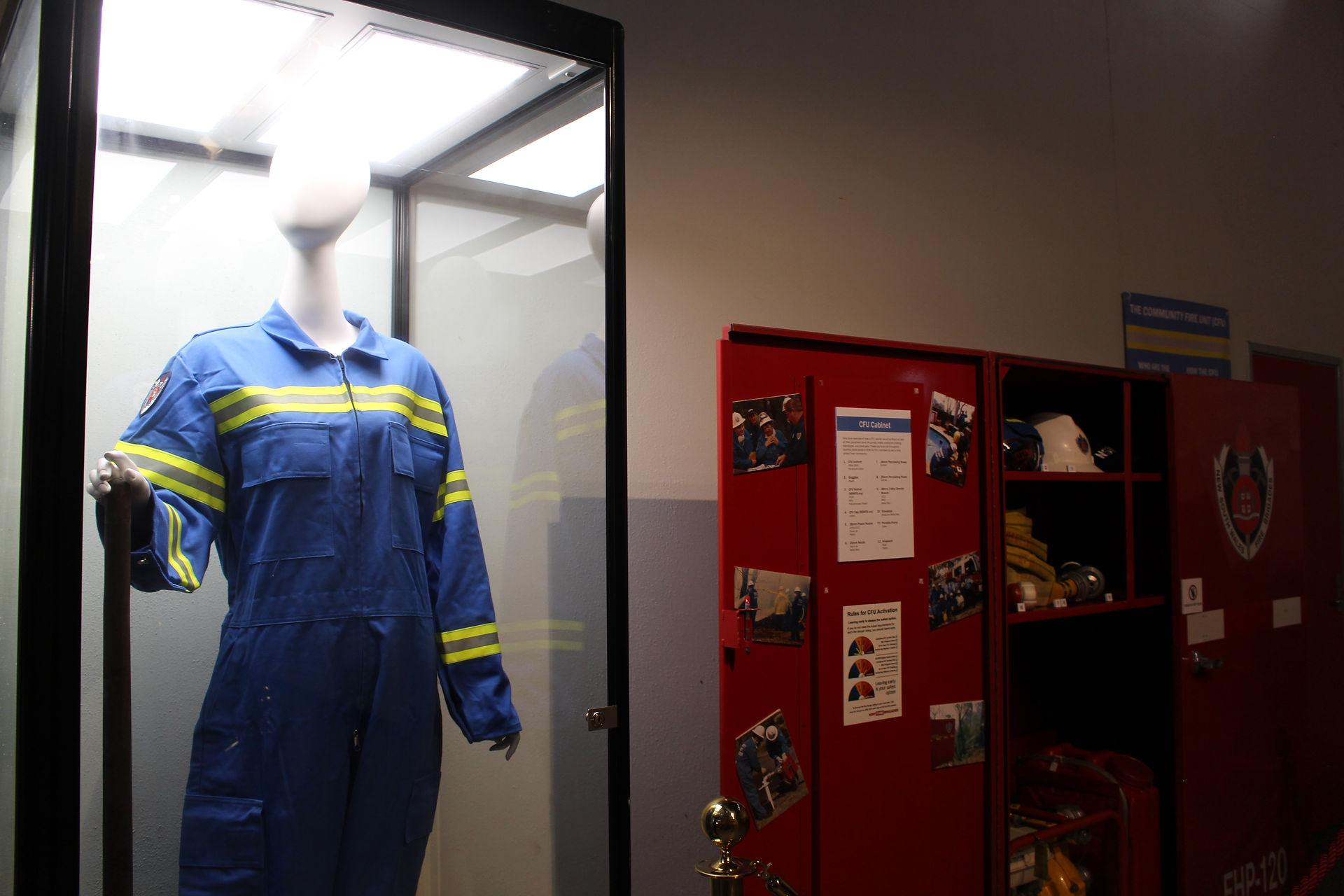

1. CFU Uniform 1994 - 2000

The CFU overalls are intended to provide the wearer with a level of fire resistance when facing grass and bushfires. The iconic blue colouring was used to make them stand out amongst Fire and Rescue NSW and Rural Fire Service personnel on the fire ground. These have now been replaced by a two-piece uniform, a protective jacket and pants.

2. Safety Goggles

Bushfire safety goggles are worn when working in smoke or other areas where eye injury or irritation is possible.

3. CFU Helmet (NSWFB era) 2008

These helmets are designed to be worn by CFU members during grass and bushfire fighting situations to provide protection from small debris from above.

4. CFU Baseball Cap (NSWFB era)

The CFU baseball cap is worn for general outdoor duties when they are not at risk from hazards requiring additional head protection.

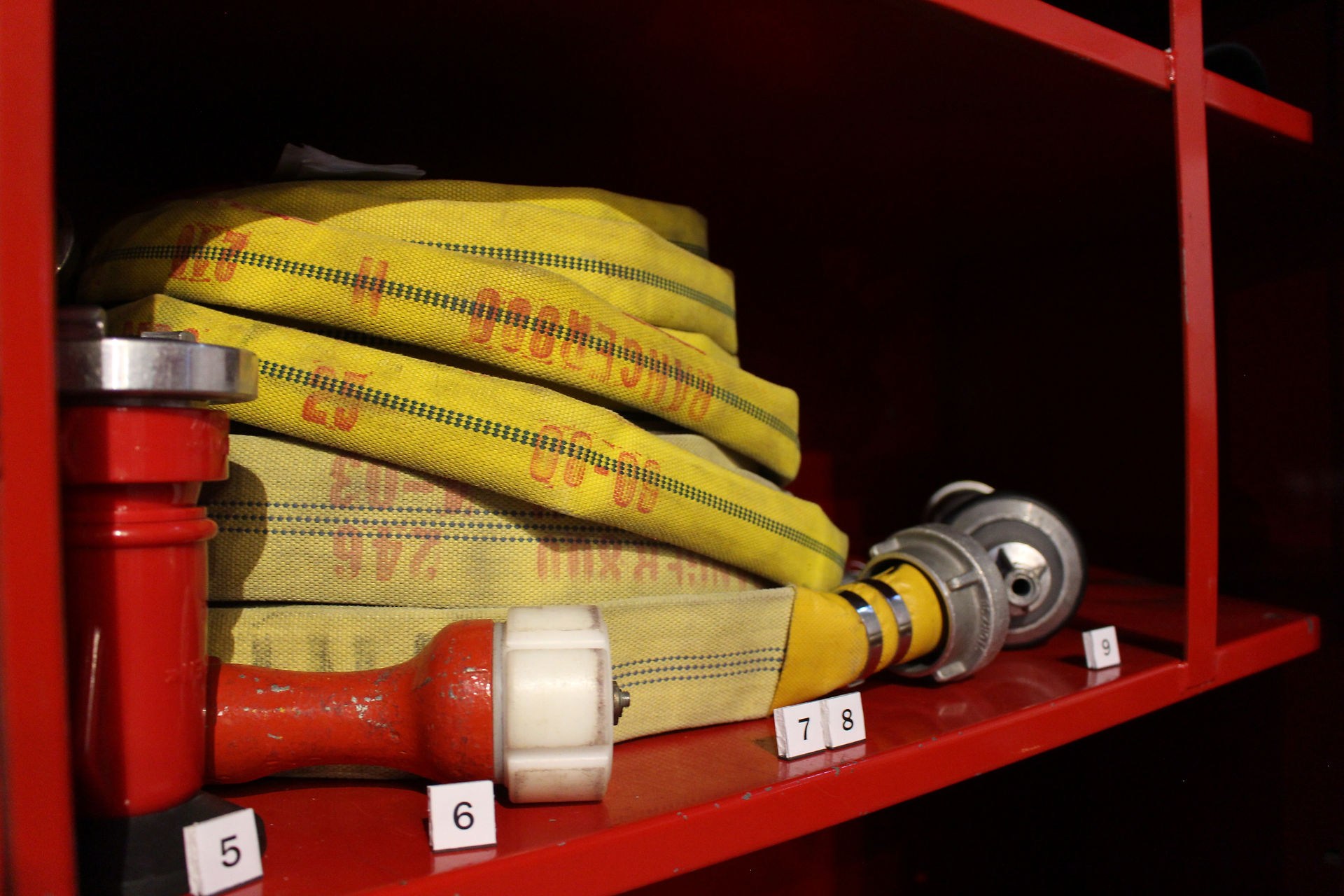

5. 38mm Plastic Nozzle 2019 - 2022

The Power Jet plastic nozzle, unlike its metal alloy counterparts is much lighter to use, making them more user friendly yet matches them in water pressure that it can output. Used for bushfire fighting purposes, the nozzle can be adjusted via a simple twist action to throw streamlined jets, water cones and even water fog.

6. 25mm Nozzle

The Dial-A-Jet nozzle is designed in such a way to prevent it from catching on undergrowth as firefighters navigate bushland for firefighting purposes. The nozzle can be adjusted through a simple twist of the plastic head to release water in a number of flow outputs from jet streams to fog.

7. 38mm Percolating Hose

The percolating hose is designed to allow water to seep through the hoses’ fabric through pin prick holes in the hose. This is designed to create a thin water barrier and prevent the hose from catching alight from falling embers or from being affected by hot flooring.

8. 25mm Percolating Hose

25mm hose is the smallest hose in diameter used by the CFU and bushfire crews at fires. 25mm hose is therefore the lightest and easiest high-pressure hose to use making it an ideal first attack response tool as it is extremely mobile and perfect for extinguishing spot fires and small grass fires.

9. 38mm 3-Way Director Branch 2010

This branch utilises an adjustable nozzle which firefighters can use to put water on a fire in a number of configurations. Firefighters can adjust the nozzle to produce a cone of water that reduces the temperature to a great area of combustible material. The flow can also be altered to send a concentrated jet of water onto a fire or achieve both results simultaneously.

10. Standpipe

Standpipes are rigid water delivery units which hoses are then connected to. Standpipes can be portable or fixed into structures such as in multi-storey buildings or on infrastructure such as bridges. Portable standpipes like this one are screwed into underground fire hydrants that are connected to water mains so that firefighters have access to a consistent source of water.

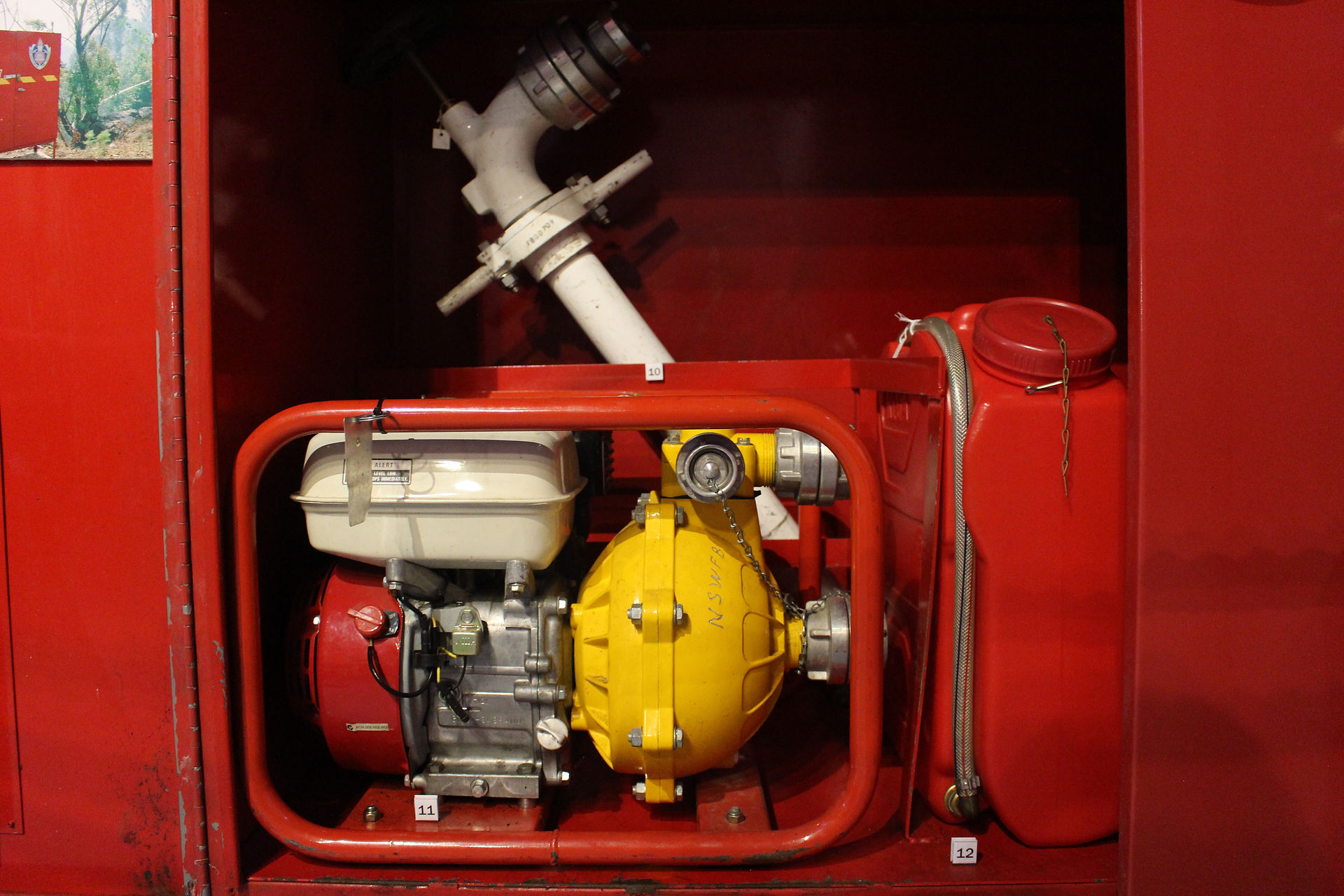

11. Portable Pump

A portable pump can be used to extract water from a swimming pool, and with a line of hose connected to the pump is a great tool for combating bushfires.

12. Knapsack

Originally made of brass or steel, knapsacks held about 20L water. The water could then be discharged via a hand-operated pump action nozzle to combat small low intensity spot fires or to assist in the ‘mop up’ efforts of firefighters after a bushfire has passed. Knapsacks are also ideal in that they can be easily refilled unlike large bushfire tankers or portable fire pumps which rely on large reservoirs of water.


-Story by the Museum of Fire Heritage Team
